Cable and Tube Inspection with 360° Technology – AIS REV 360 Cables
AIS REV 360 | Cable Inspection System
Continuous Cable and Tube Inspection System

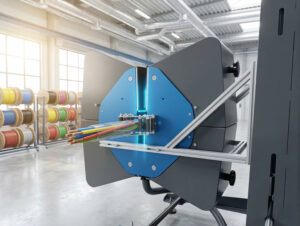

AIS REV 360 Cables is an advanced system for cable and tube inspection , designed for continuous production lines. It uses Deep Learning to perform cable and tube quality control automatically, with no need to stop or reorient the product.
This smart system detects any surface defect using full 360-degree inspection .

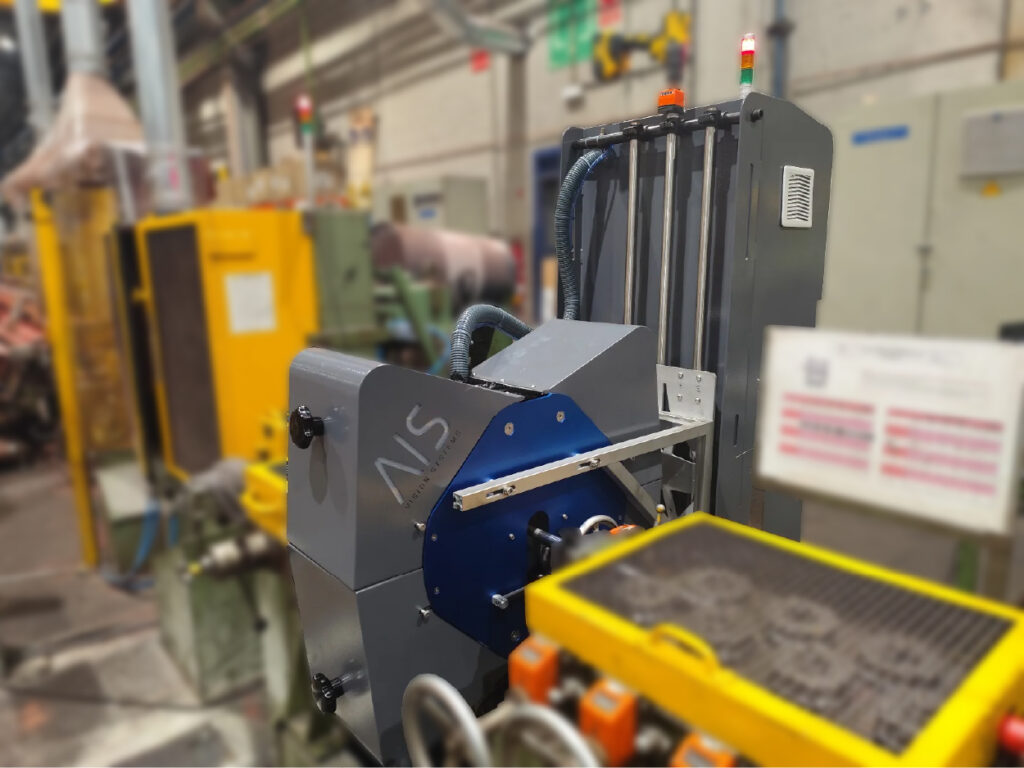

Compatible with all cylindrical surfaces
The system uses 4 high-resolution color cameras to analyze product surface quality. Compatible with:
- Coated or uncoated cables
- Extruded plastic tubes
- Metal tubes and other rotational surfaces
Real-time quality control
The solution ensures 100% inspection of production , identifying any imperfections. Production data is logged for further analysis and traceability, without interrupting the workflow. Format configuration is fast and user-friendly.
Key features
- Uniform lighting around the product contour
- High-resolution color cameras (from 5 Mpx)
- High-speed image capture (up to 225 m/min)
- 4 lateral cameras for complete 360° inspection
Discover the next evolution in cable and tube inspection
Step into the future of automated cable and tube quality control with AIS REV 360 Cables .
